Stainless Steel Valve

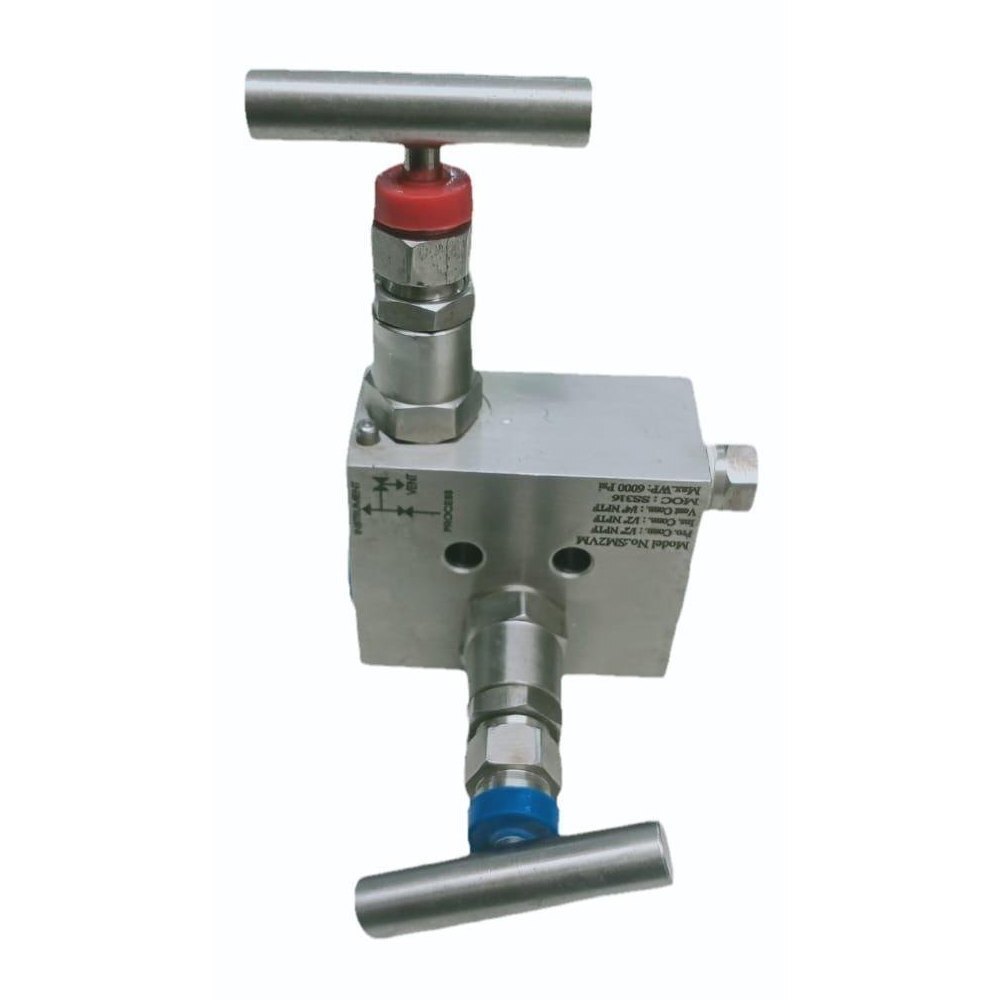

• Application
• Instrumentation, process control, pressure measurement systems

• Connection Type
• Screwed, Flanged, Pipe to Pipe, Pipe to Tube

• Control System
• Manual Operation

• Disc
• Needle Type

• Features
• Bubble tight shutoff, Leak proof design, Replaceable seat, Easy mounting

• Material
• Stainless Steel 316 (SS316), Brass (optional)

• Media
• Other, Oil, Gas, Water, Air, Steam

• Pin
• 3 Ports, 2 Outlets, 1 Inlet

• Port Size
• 1/4 NPT (F) Standard

• Power
• Manual

• Pressure
• Other, Up to 6000 PSI (415 bar)

• Sealing
• PTFE, Graphite

• Structure
• Other, 3 Way Manifold

• Temperature
• -40C to 240C (standard)

• Type
• Manifold Valve

• Valve Size
• Standard - Compact Body

• Valve Type
• 3 Way

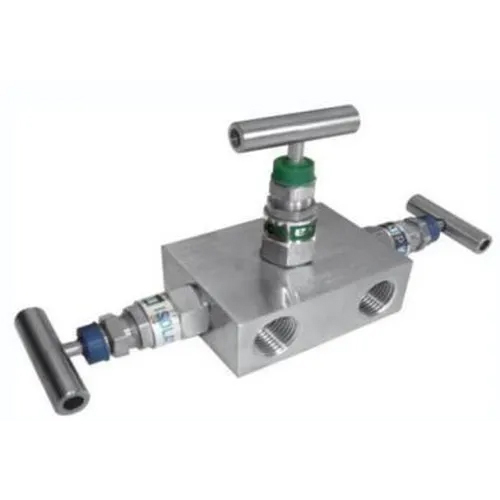

• Application
• Used in pressure measurement applications to connect differential pressure transmitters with process lines for calibration, testing, or isolation

• Connection Type
• Threaded, Flanged or Pipe-to-Pipe

• Control System
• Manual

• Disc
• Non-rotating tip for positive sealing

• Features
• Bubble tight shutoff, compact design, maintenance-free, color coded handles, easy mounting

• Material
• Stainless Steel 316/304, Carbon Steel

• Media
• Other, Gases, Liquids, Steam, Hydraulic Oils

• Port Size
• 1/4 NPT (F), 1/2 NPT (F) or as specified

• Power
• Manual

• Pressure
• Other, Up to 6000 PSI (413 Bar)

• Sealing
• PTFE or Graphite Packing

• Structure
• Other, Three way manifold valve body with two isolate and one equalizer valves

• Temperature
• -29C to 232C (for PTFE seat), up to 427C with Graphite packing

• Type
• Three Way Manifold Valve

• Valve Size
• As per order; typical: inline or remote mounted

• Valve Type
• Manifold Valve

• Voltage
• Not applicable (manual operation)

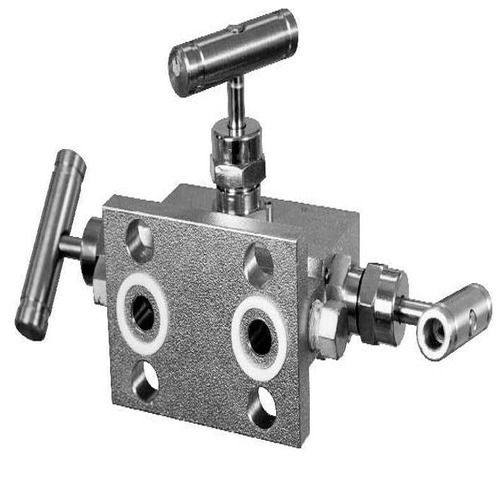

• Application
• Instrumentation, Process control, Pressure measurement, Flow measurement

• Connection Type
• Threaded (NPT), optionally tube ends

• Control System
• Manual operation

• Disc
• Hard-tipped or Soft-seat Option

• Features
• Non-rotating spindle, Leak proof design, Compact & Rugged construction

• Material
• Stainless Steel (SS 316/316L, optionally SS 304)

• Media
• Other, Gases, Liquids, Steam

• Port Size
• 1/2 inch NPT (F) Inlet x 1/2 inch NPT (F) Outlet

• Power
• Manual

• Pressure
• Other, Max 6000 psi (413 bar)

• Sealing
• PTFE Packing

• Structure
• Other, Three Valve Manifold

• Temperature
• -20C to 220C

• Type
• Isolation & Equalizer Valve Manifold

• Valve Size
• Standard/Compact

• Valve Type
• Three Valve Manifold

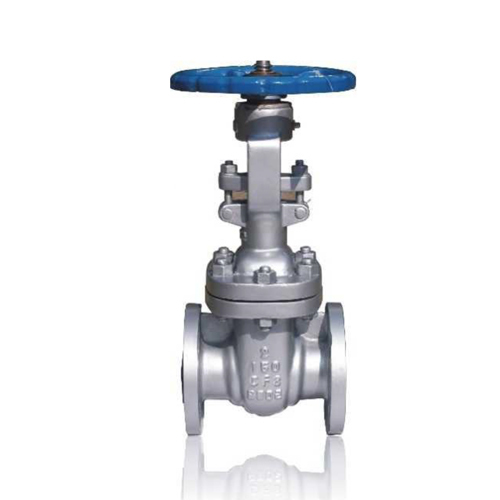

• Application
• Oil & Gas Industry, Desalination Plants, Chemical Processing, Power Generation

• Connection Type
• Flanged, Butt Weld, Socket Weld, Threaded

• Control System
• Manual Lever, Gear Operator, Pneumatic & Electric Actuator

• Disc
• Super Duplex Stainless Steel ASTM A182 F53/F55

• Features
• Corrosion Resistance, Pitting Resistance, High Strength, Durable

• Material
• Super Duplex Stainless Steel (UNS S32750/S32760)

• Media
• Other, Water, Oil, Gas, Chemicals, Seawater

• Pin
• Stainless Steel

• Port Size
• 1/2 to 24

• Power
• Other, Manual, Pneumatic, Electric

• Pressure
• Other, Class 150 to Class 2500

• Sealing
• PTFE, Metal to Metal, Graphite

• Structure
• Other, Two-piece/Three-piece/Full Port Design

• Temperature
• -50C to 300C

• Type
• Ball Valve, Gate Valve, Globe Valve, Check Valve, Butterfly Valve

• Valve Size
• DN15 to DN600

• Valve Type
• Isolation & Regulation Valves

• Voltage
• 24V/110V/220V/380V (for actuated type)

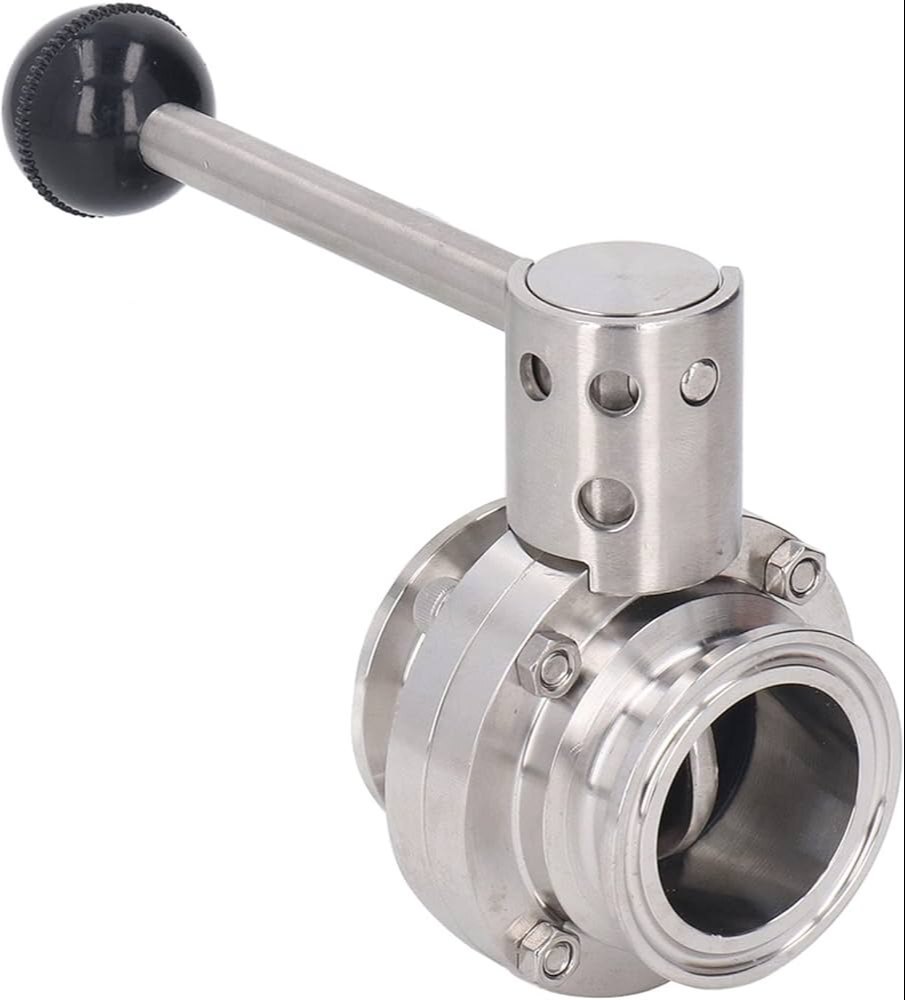

• Application
• Chemical Processing, Oil & Gas, Marine, Power Generation, Desalination Plants, Pulp & Paper Industries

• Connection Type
• Flanged, Socket Weld, Butt Weld, Threaded

• Control System
• On/Off, Modulating (Automated Options Available)

• Disc
• Super Duplex Stainless Steel

• Features
• High Corrosion Resistance, Excellent Strength, Long Life, Fire Safe Design, Blow-Out Proof Stem

• Material
• Super Duplex Stainless Steel (Grades UNS S32750/S32760)

• Media
• Other, Water, Oil, Gas, Chemicals, Slurry

• Pin
• Stainless Steel Pin

• Port Size
• 1/2 inch to 24 inch

• Power
• Other, Manual, Electric, Pneumatic

• Pressure
• Other, Class 150 to 2500 (PN10 to PN420)

• Sealing
• PTFE, Graphite, Metal-to-Metal

• Structure
• Other, Two Piece or Three Piece Body, Full or Reduced Bore

• Temperature
• -46C to 316C

• Type
• Ball Valve, Gate Valve, Globe Valve, Check Valve, Butterfly Valve

• Valve Size
• 1/2 inch to 24 inch (Customized sizes available)

• Valve Type
• Flanged, Screwed, Welded Ends

• Voltage
• 220V / 380V (for Actuated Types)

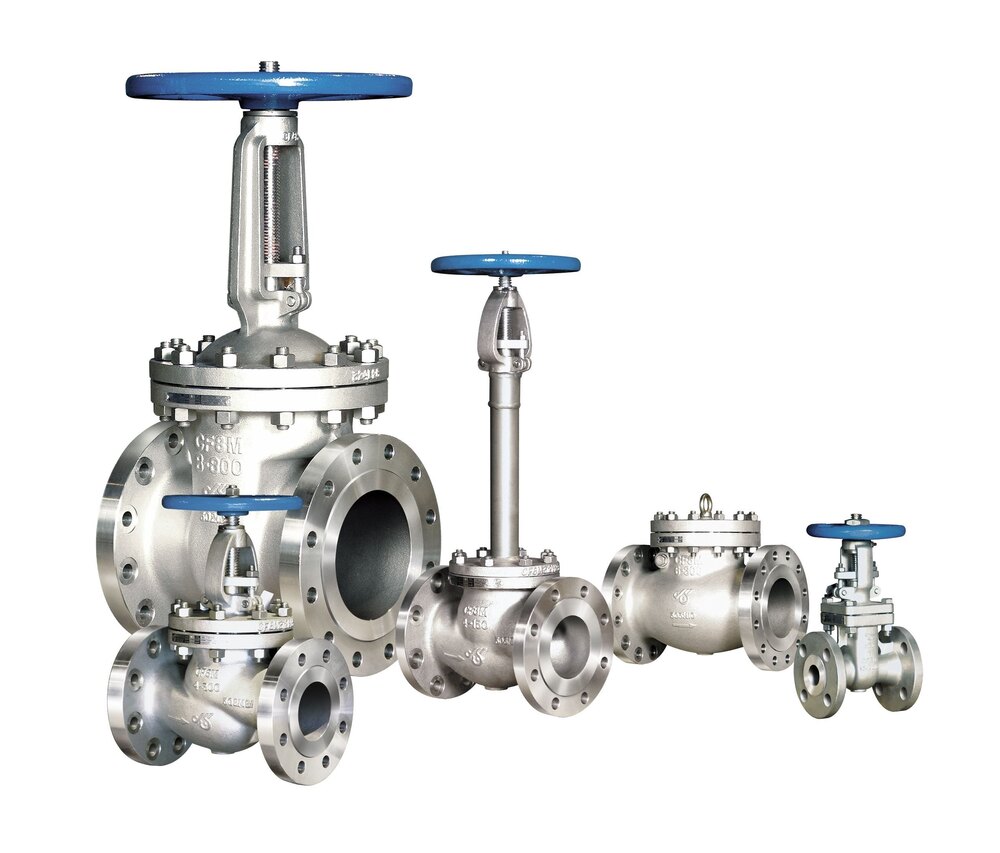

• Application
• Industrial, Chemical Processing, Petrochemical, Oil & Gas, Marine, Desalination Plants

• Connection Type
• Flanged, Socket Weld, Butt Weld, Threaded

• Control System
• Manual Lever, Gear Operated, Actuated (Electric/Pneumatic)

• Disc
• Super Duplex Stainless Steel (UNS S32750 / S32760)

• Features
• High Corrosion Resistance, High Strength, Durability, Anti-Leakage Design

• Material
• Super Duplex Stainless Steel (ASTM A182 F53 / F55, S32750, S32760)

• Media
• Other, Water, Oil, Gas, Corrosive Fluids, Slurries

• Pin
• Standard Stainless Steel Pin

• Port Size
• 12 to 24 (DN15 to DN600)

• Power
• Other, Manual, Pneumatic, Electric Actuator

• Pressure
• Other, Up to 2500 PSI (Class 150 to 2500)

• Sealing
• PTFE, Graphite, Metal-to-Metal

• Structure
• Other, Robust Body, 2 Piece or 3 Piece Design

• Temperature
• -50C to +300C

• Type
• Ball Valve, Gate Valve, Globe Valve, Check Valve, Butterfly Valve

• Valve Size
• 12 to 24

• Valve Type
• Flanged End, Butt-Weld, Socket Weld, Screwed End

• Voltage
• Available for Actuated Valves (24V, 110V, 220V, 415V)
