Stainless Steel Sheet

• Application
• Other, Boiler manufacturing, Pressure Vessels, Heat Exchangers, Industrial Boilers, Power Plants

• Coating Type
• Available with or without anti-corrosion coating

• Color
• Metallic / Natural Steel Grey

• Composition
• Carbon, Manganese, Phosphorus, Sulphur, Silicon, Trace Elements

• Corrosion Resistant
• Yes, to a certain degree

• Diameter
• Not Applicable (Rectangular Plate)

• Dimension (L*W*H)
• As per requirement / Standard: 6000-12000mm (L) x 1500-3000mm (W) x thickness

• Finish Type
• Hot Rolled / Mill Finish

• Grade
• IS 2002, ASTM A516 Gr 60/70, SA 516 Gr 60/70, DIN 17155, BS 1501, or as specified

• Hardness
• 120 - 160 HB (Brinell), depends on specific grade

• Heat Resistance
• Yes

• Material Composition %
• C 0.30%, Mn 0.79-1.30%, Si 0.40%, P 0.035%, S 0.035%

• Material Grade
• SA 516 Gr 70 / IS 2002 or as per order

• Product Form
• Flat Plate / Rolled Plate

• Product Name

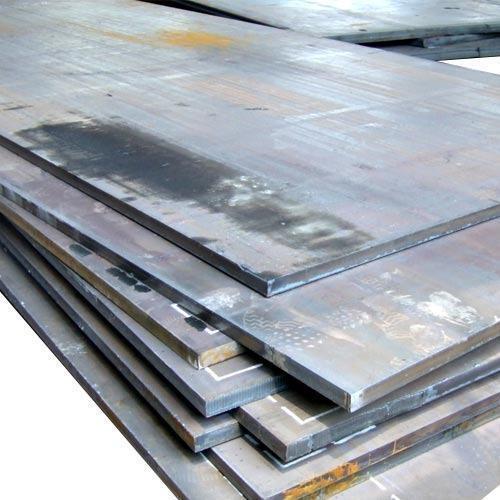

• Other, Boiler Steel Plate

• Recyclable
• Yes, 100% recyclable

• Shape
• Other, Rectangular

• Size
• Custom sizes available as per requirement

• Steel Product Type
• Other, Steel Plate

• Steel Standard
• Other, ASTM, ASME, EN, DIN, JIS, IS

• Steel Type
• Other, Alloy Steel / Carbon Steel

• Surface
• Mill Finish, Shot Blasted, Coated, Rust Resistant Oil

• Tensile Strength
• 415 - 550 MPa (varies by grade)

• Thickness
• 6 mm to 150 mm

• Usage
• Used for construction and repair of boilers and pressure vessels

• Weight
• Varies as per dimensions and thickness

• Application
• Other, Construction, chemical processing, marine, oil & gas, pressure vessels, piping systems

• Coating Type
• Uncoated / Custom coating on request

• Color
• Metallic Silver

• Composition
• Approximately 22% Cr, 5-6% Ni, 3% Mo, balance Fe

• Corrosion Resistant
• Yes, high resistance to pitting and crevice corrosion

• Diameter
• N/A (sheet form)

• Dimension (L*W*H)
• Customized as per requirement

• Finish Type
• Smooth, Matte, Brushed, Mirror

• Grade
• UNS S31803, UNS S32205, 2205, 2507, 31803

• Hardness
• Rockwell B100 max

• Heat Resistance
• Yes

• Material Composition %
• Cr 21-23%, Ni 4.5-6.5%, Mo 2.5-3.5%, N 0.14-0.20%, Fe balance

• Material Grade
• Duplex 2205/2507

• Product Form
• Sheet

• Product Name

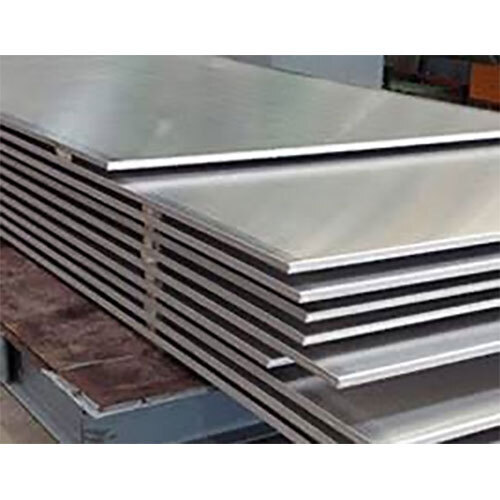

• Other, Duplex Steel Sheet

• Recyclable
• Yes

• Shape
• Other, Rectangular, Square, Custom Cut

• Size
• Standard and custom sizes available

• Steel Product Type
• Other, Sheet

• Steel Standard
• Other, ASTM A240, ASTM A479

• Steel Type
• Other, Duplex Stainless Steel

• Surface
• Hot rolled, Cold rolled, 2B, BA, Polished, Matte

• Tensile Strength
• 620 MPa min

• Thickness
• 0.5 mm to 50 mm

• Usage
• Industry, architecture, fabrication, oil & gas, chemical plants

• Weight
• As per size and thickness

• Application
• Other, Industrial, Construction, Offshore, Chemical Processing, Petrochemical, Marine, Paper & Pulp, Oil & Gas Industries

• Coating Type
• Uncoated or available with custom coatings

• Color
• Silver / Metallic

• Composition
• Ferritic-Austenitic (Duplex) Stainless Steel

• Corrosion Resistant
• Excellent (high resistance to pitting, crevice, and stress corrosion)

• Diameter
• N/A (Sheet product, not applicable)

• Dimension (L*W*H)
• Customizable as per requirement

• Finish Type
• Smooth, Polished, Matte

• Grade
• Duplex 2205 / UNS S31803 / S32205, Others on request

• Hardness
• Max 293 HB

• Heat Resistance
• Yes

• Material Composition %
• Cr 22%, Ni 5-6.5%, Mo 3%, N 0.14% (typical for 2205)

• Material Grade
• 2205 Duplex, 2507 Super Duplex, Other Duplex Grades

• Product Form
• Sheet

• Product Name
• Other, Duplex Steel Sheet

• Recyclable
• Yes

• Shape
• Other, Rectangular, Square, Custom Shapes

• Size
• Standard and customized sizes available

• Steel Product Type
• Other, Sheet

• Steel Standard
• Other, ASTM A240 / ASME SA240

• Steel Type
• Other, Duplex Stainless Steel

• Surface
• Hot Rolled, Cold Rolled, 2B, No.1, No.4, BA, Custom Finishes

• Tensile Strength
• 620 MPa min

• Thickness
• 0.5 mm to 50 mm (customization available)

• Usage
• Industrial, Structural, Pressure Vessels, Heat Exchangers, Desalination Equipment

• Weight
• As per dimensions and thickness

• Application
• Other, Aerospace, marine, chemical processing, nuclear reactors, pollution control, and oil & gas industries

• Coating Type
• Uncoated

• Color
• Silver / Metallic

• Composition
• Ni, Cr, Mo, Nb, Fe, C, Si, Mn, P, S, Al, Ti, Co (Nickel-chromium-molybdenum alloy)

• Corrosion Resistant
• Excellent resistance to corrosion and oxidation

• Diameter
• N/A (sheet product)

• Dimension (L*W*H)
• As per requirement (custom sizes available)

• Finish Type
• Mill Finish / Custom finishes available

• Grade
• Inconel 625

• Hardness
• Rockwell B88 maximum

• Heat Resistance
• Yes

• Material Composition %
• Nickel 58%, Chromium 21.5%, Molybdenum 9%, Niobium 3.6%, Iron (balance), other elements

• Material Grade
• UNS N06625

• Product Form
• Sheet

• Product Name

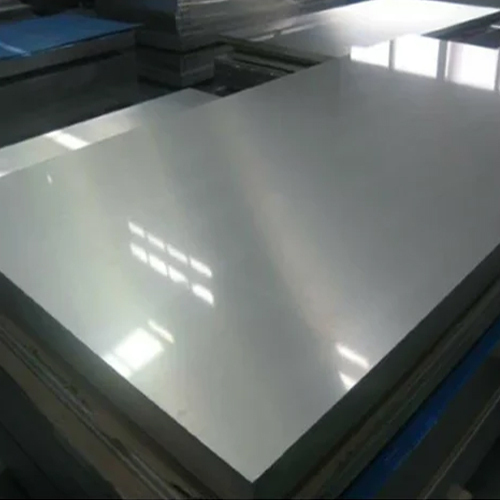

• Other, Inconel 625 Sheets

• Recyclable
• Yes

• Shape
• Other, Sheet

• Size
• Width: 1000-2000 mm; Length: up to 6000 mm (custom sizes available)

• Steel Product Type
• Other, Sheet

• Steel Standard
• Other, ASTM B443 / ASME SB443

• Steel Type
• Other, Nickel Alloy

• Surface
• Polished, Bright, Hot Rolled, Cold Rolled

• Tensile Strength
• 827 MPa minimum

• Thickness
• 0.5 mm to 100 mm

• Usage
• Used in high-temperature, high-strength, and corrosion-resistant applications

• Weight
• Varies with size and thickness

• Application
• Other, Aerospace, Marine, Chemical Processing, Nuclear Reactors, Oil & Gas, Heat Exchangers, Industrial Furnace Components

• Coating Type
• Uncoated/Custom on request

• Color
• Silvery Grey

• Composition
• Nickel (58% min), Chromium (20-23%), Molybdenum (8-10%), Niobium (3.15-4.15%)

• Corrosion Resistant
• Excellent resistance to pitting, crevice and intergranular corrosion

• Dimension (L*W*H)
• Custom as per requirement

• Finish Type
• 2B, BA, No.1 or as specified

• Grade
• Inconel 625 / UNS N06625

• Hardness
• 220 HB

• Heat Resistance
• Yes

• Material Composition %
• Ni 58% min, Cr 20-23%, Mo 8-10%, Nb 3.15-4.15%, Fe 5%

• Material Grade
• Inconel 625

• Product Form
• Sheet/Plate

• Product Name
• Other, Inconel 625 Sheet

• Recyclable
• Yes

• Shape
• Other, Rectangular / Square

• Size
• Standard and customized sizes

• Steel Product Type
• Other, Sheet

• Steel Standard
• Other, ASTM B443 / ASME SB443

• Steel Type
• Other, Nickel-based superalloy

• Surface
• Bright / Hot Rolled / Cold Rolled

• Tensile Strength
• 830 MPa min

• Thickness
• 0.5 mm to 50 mm

• Usage
• Industrial, Marine, and High-Temperature Applications

• Weight
• Varies as per dimensions and thickness
