Stainless Steel Nipple

• Application
• Other, Pipe Fittings, Plumbing, Industrial piping, Water Supply Systems

• Coating Type
• None (self-finished stainless steel)

• Color
• Silver/Grey

• Composition
• 18-20% Cr, 8-12% Ni (for 304 grade)

• Corrosion Resistant
• Yes, excellent corrosion resistance

• Diameter
• Available from 1/8 to 4 NPT/BSP

• Dimension (L*W*H)
• Depends on Size (e.g. 1/2 inch x 1/2 inch x Length)

• Finish Type
• Bright/Smooth

• Grade
• SS 304 / SS 316

• Hardness
• Rockwell B80 max

• Heat Resistance
• Yes

• Material Composition %
• Cr: 18-20%, Ni: 8-12%, C: 0.08%, Fe: Balance

• Material Grade
• SS 304 / SS 316

• Product Form
• Hex Nipple

• Product Name
• Other, SS Hex Nipple

• Recyclable
• Yes

• Shape
• Other, Hexagonal (Hex) middle, cylindrical threaded ends

• Size
• Customary: 1/2 inch, 3/4 inch, 1 inch, etc.

• Steel Product Type
• Other, Hex Nipple Fitting

• Steel Standard
• Other, ASTM A182 / AISI 304/316

• Steel Type
• Stainless Steel

• Surface
• Smooth, Machine Finished

• Tensile Strength
• 515 MPa min (for 304), 520 MPa min (for 316)

• Thickness
• Varies with Size (approx. 2mm to 5mm)

• Usage
• Connecting two female threaded pipe fittings

• Weight
• Varies with size (approx. 30 - 250 grams)

• Application
• Other, Hydraulic piping systems, fluid conveying, plumbing fittings, industrial instrumentation

• Coating Type
• None (Natural Polished Stainless Steel)

• Color
• Silver/Grey

• Composition
• Chromium-Nickel Stainless Steel

• Corrosion Resistant
• Yes

• Diameter
• 1/8 inch to 4 inch (or as required)

• Dimension (L*W*H)
• Customizable as per requirements

• Finish Type
• Polished/Smooth Finish

• Grade
• SS304/SS316/SS316L

• Hardness
• 201 HB (SS304/316)

• Heat Resistance
• Yes

• Material Composition %
• 18% Cr, 8% Ni (SS304); 16-18% Cr, 10-14% Ni, 2-3% Mo (SS316)

• Material Grade
• 304, 316, 316L

• Product Form
• Hex Nipple

• Product Name
• Other, SS Hydraulic Hex Nipple

• Recyclable
• Yes

• Shape
• Other, Hexagonal with threaded ends

• Size
• 1/8 to 4 (BSP/NPT/Custom)

• Steel Product Type
• Other, Nipple Fittings

• Steel Standard
• Other, ASTM A182/A276

• Steel Type
• Stainless Steel

• Surface
• Polished

• Tensile Strength
• 515 MPa min (SS304), 515 MPa min (SS316)

• Thickness
• 2 mm - 8 mm (depending on size)

• Usage
• Joining two threaded pipes/hose/valves

• Weight
• Varies as per size (standard: approx. 50g to 500g)

• Application
• Other, Plumbing, Gas Lines, Industrial Piping, Water Supply, Chemical Processing

• Coating Type
• None / Self-finished

• Color
• Silver

• Composition
• Stainless Steel Alloy

• Corrosion Resistant
• Yes

• Diameter
• 1/8 - 12 (custom available)

• Dimension (L*W*H)
• Custom/Standard Sizes

• Finish Type
• Polished / Matt

• Grade
• 304/304L, 316/316L

• Hardness
• 217 Brinell Max (for 304)

• Heat Resistance
• Yes

• Material Composition %
• Cr: 18-20%, Ni: 8-12%, Fe: Balance

• Material Grade
• SS 304/304L/316/316L

• Product Form
• Nipple

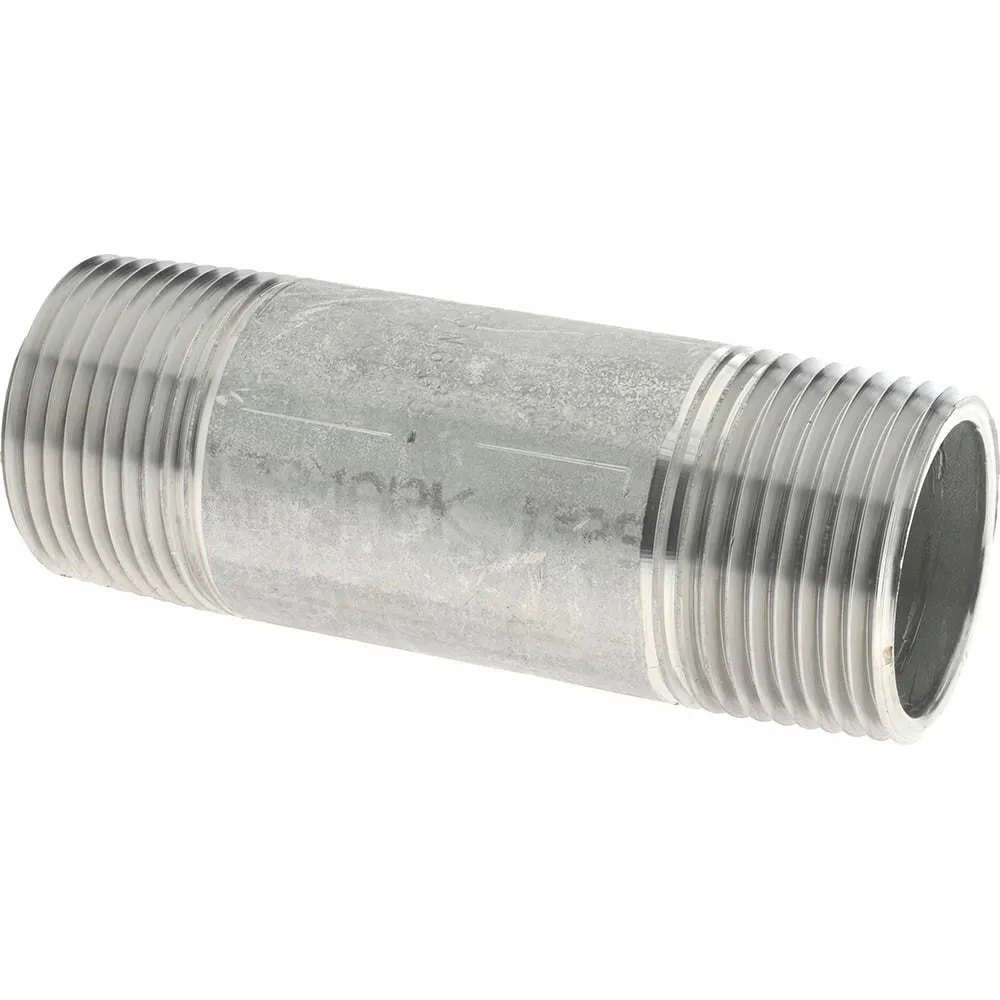

• Product Name
• Other, Stainless Steel Pipe Fittings Nipple

• Recyclable
• Yes

• Shape
• Other, Cylindrical

• Size
• Custom/Standard Sizes Available

• Steel Product Type
• Other, Fittings Nipple

• Steel Standard
• Other, ASTM A312, A403

• Steel Type
• Stainless Steel

• Surface
• Polished / Plain

• Tensile Strength
• 515 MPa Min (for 304)

• Thickness
• Custom/Standard

• Usage
• Joining/Connecting Pipes

• Weight
• Varies as per Size and Length

• Application
• Other, Plumbing, piping connections, fluid transport systems, industrial fittings

• Coating Type
• None, natural steel

• Color
• Silver metallic

• Composition
• Cr-Ni steel alloy, mainly composed of iron, chromium, and nickel

• Corrosion Resistant
• Yes, excellent

• Diameter
• Available in sizes from 1/8 inch to 4 inches (custom sizes on request)

• Dimension (L*W*H)
• Custom sizes available, refer to product datasheet

• Finish Type
• Polished / Matt

• Grade
• SS304, SS316 (other grades available on request)

• Hardness
• 201 HB (SS304 typical)

• Heat Resistance
• Yes

• Material Composition %
• 18% Cr, 8% Ni (SS304); 16-18% Cr, 10-14% Ni, 2-3% Mo (SS316)

• Material Grade
• SS304/SS316

• Product Form
• Reducer Hex Nipple

• Product Name
• Other, Stainless Steel Reducer Hex Nipple

• Recyclable
• Yes

• Shape
• Other, Hexagonal body with cylindrical ends

• Size
• Multiple options (1/2 x 1/4 inch, 3/4 x 1/2 inch, etc.)

• Steel Product Type
• Other, Reducer Hex Nipple

• Steel Standard
• Other, ASTM A182 / ASME SA182

• Steel Type
• Stainless Steel

• Surface
• Polished or matt finish

• Tensile Strength
• 515 MPa min (SS304)

• Thickness
• 3 mm to 8 mm (varies by design)

• Usage
• Connection and transition between pipes of different diameters

• Weight
• Varies by size; for example, approx. 70-200 grams

• Application
• Other, Used for connecting pipes in high-pressure industrial piping systems, food processing, chemical, pharmaceutical, and water treatment industries.

• Coating Type
• Uncoated

• Color
• Silver metallic

• Composition
• 18% Cr, 8% Ni

• Corrosion Resistant
• Excellent resistance to oxidation and corrosion

• Diameter
• Available from 1/8 to 4 (DN6-DN100)

• Dimension (L*W*H)
• According to ASME B16.11; available in standard and custom sizes.

• Finish Type
• Bright Annealed / Pickled

• Grade
• 304L

• Hardness
• 95 HRB

• Heat Resistance
• Yes

• Material Composition %
• Cr 18-20%, Ni 8-10.5%, C 0.03%

• Material Grade
• 304L

• Product Form
• Welding Nipple Fitting

• Product Name
• Other, Stainless Steel Socket Weld Welding Nipple Fitting 304L

• Recyclable
• Yes

• Shape
• Other, Cylindrical with socket weld ends

• Size
• Customizable; standard sizes as per catalog

• Steel Product Type
• Other, Pipe Fitting

• Steel Standard
• Other, ASTM A182, ASME B16.11

• Steel Type
• Other, Austenitic Stainless Steel

• Surface
• Pickled, Passivated, or Mill Finish

• Tensile Strength
• Min. 485 MPa

• Thickness
• Standard wall thickness as per MSS-SP-97 or customer specification.

• Usage
• For joining and sealing piping or tubing in various process industries.

• Weight
• Varies as per size; typically 0.1 kg to 1.2 kg.
