Stainless Steel Bars

• Application
• Other, Aerospace, chemical processing, marine industry, medical devices, power generation

• Coating Type
• Uncoated

• Color
• Silver/Grey

• Composition
• Titanium (Ti) 99.2%, Iron (Fe) 0.30%, Oxygen (O) 0.35%, Carbon (C) 0.08%, Nitrogen (N) 0.05%, Hydrogen (H) 0.015%

• Corrosion Resistant
• Excellent resistance to oxidizing and neutral solutions

• Diameter
• 3 mm to 200 mm or as required

• Dimension (L*W*H)
• Custom as per requirement

• Finish Type
• Polished/Machined

• Grade
• Grade 3

• Hardness
• Rockwell C 80-90

• Heat Resistance
• Yes

• Material Composition %
• Ti 99.2%; Fe 0.30%; O 0.35%; C 0.08%; N 0.05%; H 0.015%

• Material Grade
• ASTM Grade 3

• Product Form
• Rod / Bar

• Product Name

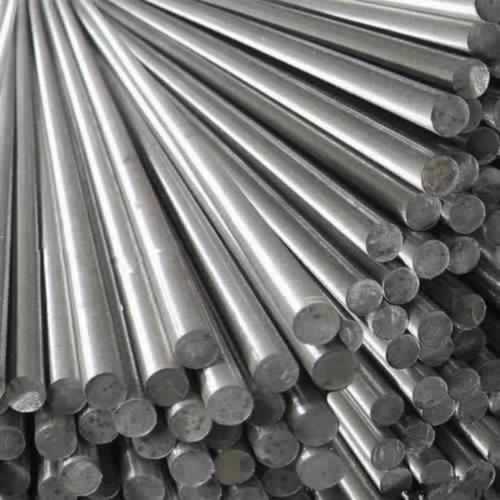

• Other, Titanium Grade 3 Round Bar

• Recyclable
• Yes

• Shape
• Other, Round

• Size
• Customizable lengths and diameters

• Steel Product Type
• Other, Round Bar

• Steel Standard
• Other, ASTM B348, AMS 4921

• Steel Type
• Other, Titanium Alloy

• Surface
• Bright, Smooth

• Tensile Strength
• Minimum 485 MPa

• Thickness
• Custom/Standard thickness available

• Usage
• High-strength, corrosion-resistant applications

• Weight
• Varies as per size and length

• Application
• Other, Aerospace, Marine, Chemical Processing, Medical, Industrial, Automotive

• Coating Type
• Uncoated/Natural

• Color
• Metallic Silver

• Composition
• Titanium (90%), Aluminium (6%), Vanadium (4%)

• Corrosion Resistant
• Yes, Excellent corrosion resistance

• Diameter
• 3 mm to 200 mm or as required

• Dimension (L*W*H)
• Custom sizes available or as per requirement

• Finish Type
• Bright, Smooth

• Grade
• Grade 5 (Ti-6Al-4V)

• Hardness
• Rockwell C 36 max

• Heat Resistance
• Yes

• Material Composition %
• Ti 90%, Al 6%, V 4%

• Material Grade
• Grade 5

• Product Form
• Bar

• Product Name

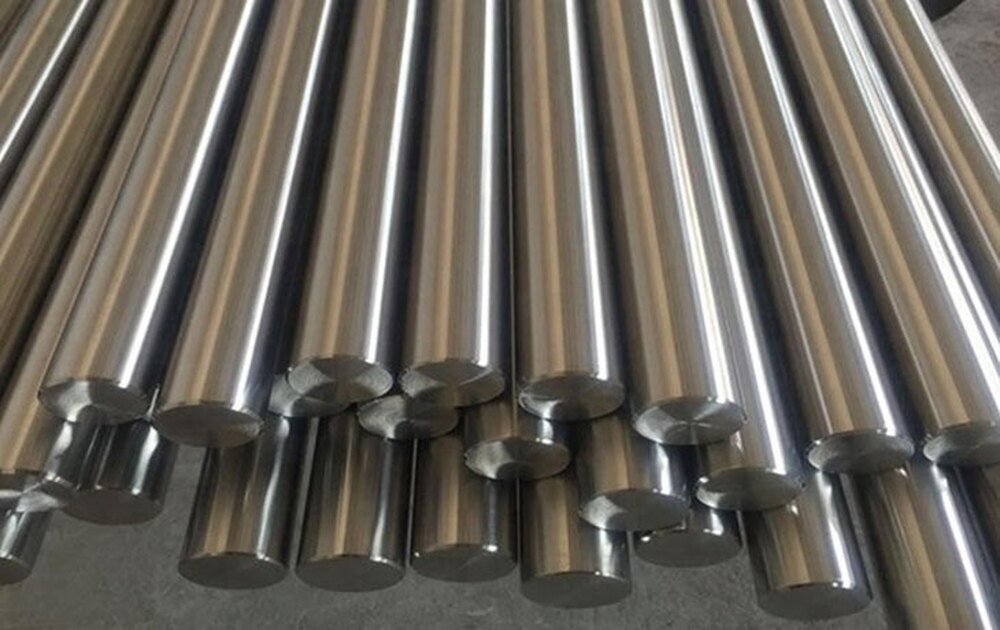

• Other, Titanium Grade 5 Round Bars

• Recyclable
• Yes

• Shape
• Other, Round

• Size
• Customized sizes provided

• Steel Product Type
• Other, Round Bar

• Steel Standard
• Other, ASTM B348, AMS 4928, ASME SB348, MIL-T-9046

• Steel Type
• Other, Titanium Alloy

• Surface
• Bright/Polished

• Tensile Strength
• Minimum 895 MPa

• Thickness
• Custom or as specified

• Usage
• Engineering structures requiring high strength-to-weight ratio

• Weight
• Varies with dimension and length

• Application
• Other, Construction, Marine, Chemical Processing, Oil & Gas Industry, Papermill Equipment, Desalination Plants, Structural and Engineering Purposes

• Coating Type
• None (as supplied); can be custom coated

• Color
• Metallic Silver

• Composition
• Approx. 22% Cr, 5-6.5% Ni, 3% Mo, balance Fe, plus N, Mn, Si, and others

• Corrosion Resistant
• Yes, excellent resistance to pitting and crevice corrosion

• Diameter
• 6 mm to 350 mm

• Dimension (L*W*H)
• Customizable as per requirement

• Finish Type
• Bright / Matte / Polished

• Grade
• UNS S31803 / S32205 (Typical)

• Hardness
• Brinell 250 (max), Rockwell C 32 (max)

• Heat Resistance
• Yes

• Material Composition %
• Cr 21-23%, Ni 4.5-6.5%, Mo 2.5-3.5%, N 0.14-0.20%, Mn 2% max, Si 1% max, Fe balance

• Material Grade
• 2205 Duplex Stainless Steel

• Product Form
• Hot Rolled / Cold Drawn

• Product Name

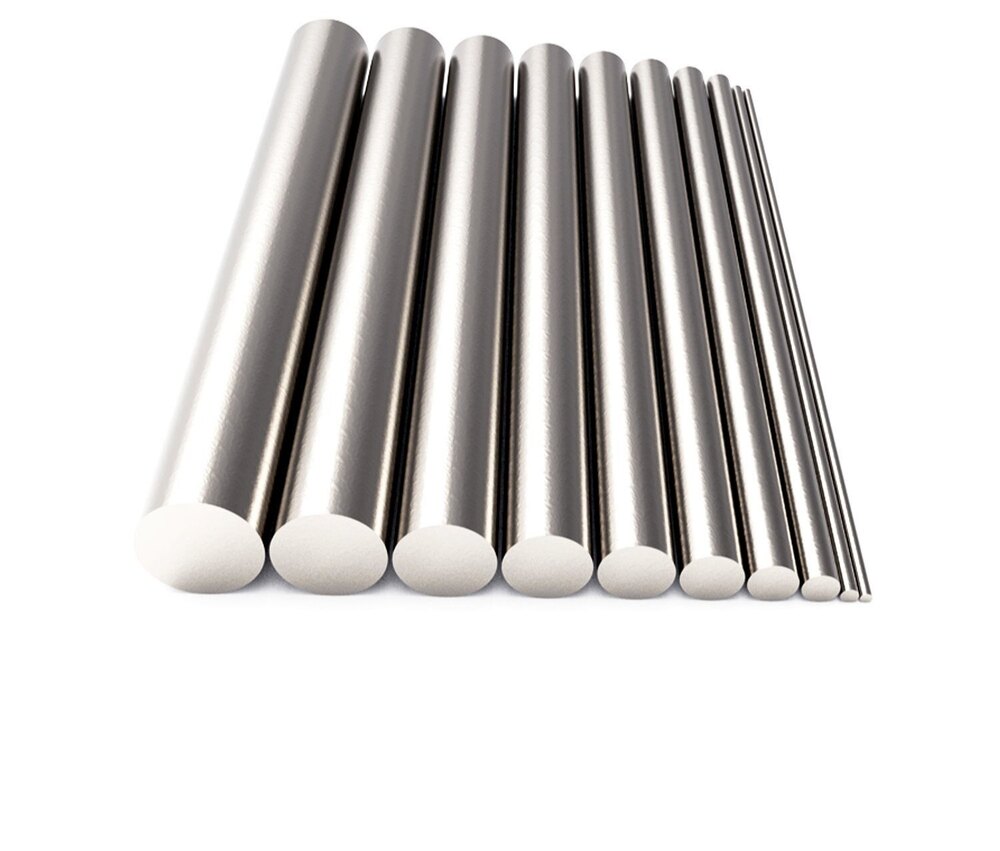

• Other, Duplex Stainless Steel Round Bar

• Recyclable
• Yes

• Shape
• Other, Round

• Size
• Custom sizes available

• Steel Product Type
• Other, Round Bar

• Steel Standard
• Other, ASTM A276 / ASTM A479

• Steel Type
• Other, Duplex Stainless Steel

• Surface
• Polished / Bright / Peeled / Black

• Tensile Strength
• 620 MPa

• Thickness
• Up to 300 mm (customized)

• Usage
• Machined Parts, Shafts, Fasteners, Valves, Fittings, Construction

• Weight
• Varies as per size and length

• Application
• Other, Construction, Chemical Industry, Oil & Gas, Marine Engineering, Paper & Pulp Industry, Power Plants

• Coating Type
• None (supplied as bare or as requested)

• Color
• Metallic Silver-Grey

• Composition
• Cr 22%, Ni 5-6%, Mo 3%, N 0.14%, Fe Balance

• Corrosion Resistant
• Excellent resistance to pitting and crevice corrosion

• Diameter
• 3 mm to 350 mm

• Dimension (L*W*H)
• Customizable as per requirement

• Finish Type
• Bright/Polished/Annealed/Cold Drawn

• Grade
• Duplex 2205, UNS S31803, UNS S32205, Other Duplex Grades Available

• Hardness
• Min 30 HRC

• Heat Resistance
• Yes

• Material Composition %
• Cr 21-23%, Ni 4.5-6.5%, Mo 2.5-3.5%, N 0.08-0.20%, Mn 2%, Si 1%, C 0.03%, Fe Balance

• Material Grade
• Duplex Stainless Steel 2205 / S32205 or as specified

• Product Form
• Bars / Rods

• Product Name
• Other, Duplex Steel Bars

• Recyclable
• Yes

• Shape
• Other, Round, Hexagonal, Square, Flat

• Size
• Standard & custom lengths available

• Steel Product Type
• Other, Bar

• Steel Standard
• Other, ASTM A276, ASTM A479, EN 10088

• Steel Type
• Other, Duplex Stainless Steel

• Surface
• Bright, Black, Peeled, Polished, Rough Turned

• Tensile Strength
• Min 620 MPa

• Thickness
• Ranges from 5 mm to 500 mm

• Usage
• Used for structural and industrial purposes

• Weight
• As per size and length specified

• Application
• Other, Aerospace, Gas turbine, Power generation, Chemical processing, Marine engineering

• Coating Type
• Uncoated / As specified

• Color
• Metallic Silver

• Composition
• Nickel-Chromium Superalloy

• Corrosion Resistant
• Excellent

• Diameter
• 6 mm to 200 mm (custom sizes available)

• Dimension (L*W*H)
• Customizable / As required

• Finish Type
• Bright / Polished / Peeled

• Grade

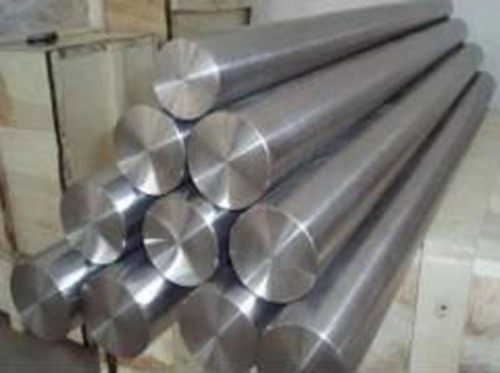

• Inconel 724

• Hardness
• Rockwell C 28-38

• Heat Resistance
• Yes

• Material Composition %
• Ni: ~59%, Cr: 20-21%, Fe: 9-10%, Mo: ~3%, Nb+Ta: ~2.5%, Ti: ~1.2%, Al: ~0.90%, Co: <1.0%, balance others

• Material Grade
• Inconel 724

• Product Form
• Bar

• Product Name
• Other, Inconel Alloy Bar 724

• Recyclable
• Yes

• Shape
• Other, Round / Square / Rectangle / Hex (on request)

• Size
• Custom / As required

• Steel Product Type
• Other, Bar

• Steel Standard
• Other, ASTM B637

• Steel Type
• Other, Nickel-Based Superalloy

• Surface
• Bright, Polished, Peeled or Black

• Tensile Strength
• Minimum 1000 MPa

• Thickness
• 10 mm to 200 mm (customized on request)

• Usage
• High temperature, high strength, anti-corrosive applications

• Weight
• As per dimension and length

• Application
• Other, Aerospace, Gas Turbines, Nuclear Reactors, Chemical Processing, Springs, Pressure Vessels

• Coating Type
• Uncoated / as required

• Color
• Metallic Silver/Grey

• Composition
• Nickel-Chromium-based superalloy; can include Ni 70%, Cr 14-17%, Fe 5-9%, Ti 2.25-2.75%, Al 0.4-1.0%, other elements

• Corrosion Resistant
• Excellent

• Diameter
• 4mm to 300mm (Standard & Custom Sizes)

• Dimension (L*W*H)
• Customizable as per requirement

• Finish Type
• Bright, Black, or Polished

• Grade

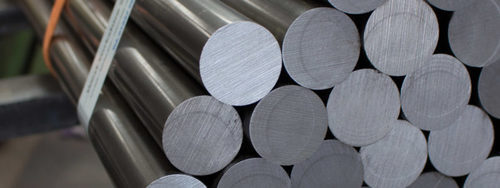

• Inconel X750

• Hardness
• Rockwell B80 - C35, depending on condition

• Heat Resistance
• Yes

• Material Composition %
• Ni 70%, Cr 14-17%, Fe 5-9%, Ti 2.25-2.75%, Al 0.4-1.0%, Nb/Cb 0.7%-1.2%, Mn 1% max, Si 0.5% max

• Material Grade
• Inconel X750

• Product Form
• Round Bar

• Product Name
• Other, Inconel X750 Round Bar

• Recyclable
• Yes

• Shape
• Other, Round

• Size
• Custom lengths - standard lengths up to 6 meters

• Steel Product Type
• Other, Round Bar

• Steel Standard
• Other, ASTM B637, AMS 5667, AMS 5668, AMS 5698, AMS 5747

• Steel Type
• Other, Nickel Alloy

• Surface
• Bright, Black, or Polished Finish

• Tensile Strength
• up to 130 ksi (896 MPa)

• Thickness
• Varies as per diameter - typically 4mm to 300mm

• Usage
• High temperature and high-stress environment applications

• Weight
• As per size and length

• Application
• Other, Aerospace, chemical processing, petrochemical, food processing, nuclear waste processing, and general metalworking industries

• Coating Type
• None (bare metal)

• Color
• Silvery

• Composition
• Martensitic precipitation hardening stainless steel

• Corrosion Resistant
• Yes

• Diameter
• 6mm - 300mm (stock range)

• Dimension (L*W*H)
• Customizable as per requirement

• Finish Type
• Cold Finished/Hot Rolled/Polished

• Grade

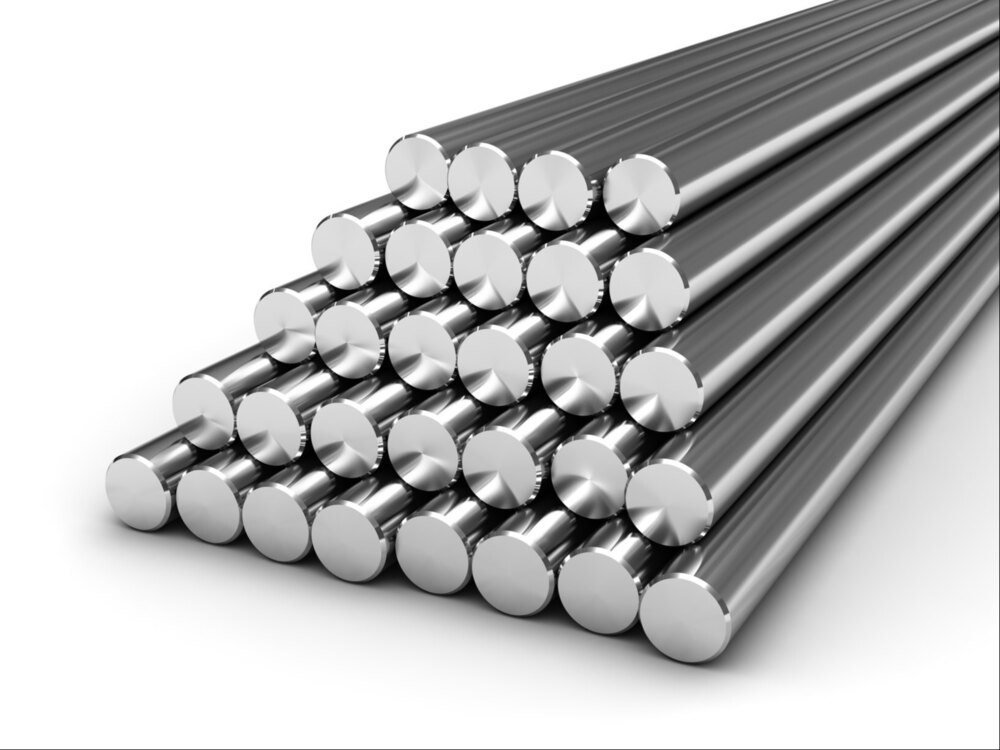

• 17-4 PH

• Hardness
• 28-44 HRC (Heat Treatment dependent)

• Heat Resistance
• Yes

• Material Composition %
• Fe bal., 15-17.5% Cr, 3-5% Ni, 3-5% Cu, <0.07% C, 0.15-0.45% Nb

• Material Grade
• 17-4 PH

• Product Form
• Round Bar

• Product Name
• Other, Stainless Steel 17-4 PH Round Bar

• Recyclable
• Yes

• Shape
• Other, Round

• Size
• Custom lengths and diameters available

• Steel Product Type
• Other, Round Bar

• Steel Standard
• Other, ASTM A564, AMS 5643

• Steel Type
• Stainless Steel

• Surface
• Bright, Smooth, Peeled, Black

• Tensile Strength
• 850-1050 MPa (varies with condition)

• Thickness
• Available in various thicknesses

• Usage
• High strength and moderate corrosion resistance applications

• Weight
• Varies with diameter and length
